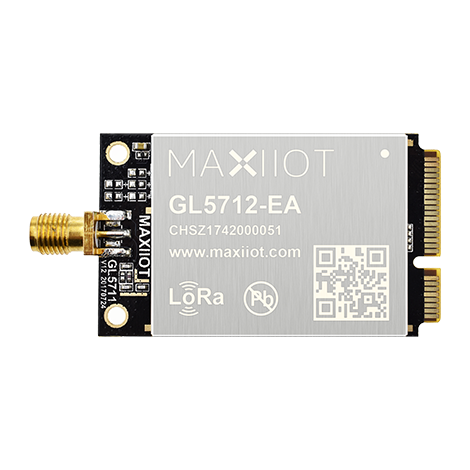

LoRa module GL5712

• Compliance to LoRaWAN
• Eight(8) programmable Lora parallel demodulation channels.
• mPCIe form factor based on USB /SPI host interface
• Tx power +27dBm, Rx -142.5dBm
• Supply voltage:+3.3V
• Compact mPCIe form factor TYP. 50.8*30.3*4.7mm (W*L*H)
• Support Linux and widows etc systems.

GL5712 is a LoRa concentrator card with industrial standard mini PCI express form factor based on SX1301 chipset . This mPCIe module can be used in any embedded platform offering a free mPCIe slot with USB/SPI connectivity and capable of providing enough power for the module, enables low-power wide area communication capabilities to your new gateway design or existing industrial routers/computer.

Each module support eight(8) programmable Lora parallel demodulation channels, allowing it to receive up to eight LoRa® modulated packets simultaneously. -142.5dBm high sensitivity combine with +27dBm power amplifer yields industry leading link budget making it optimal for applications requiring extended range and robustness
