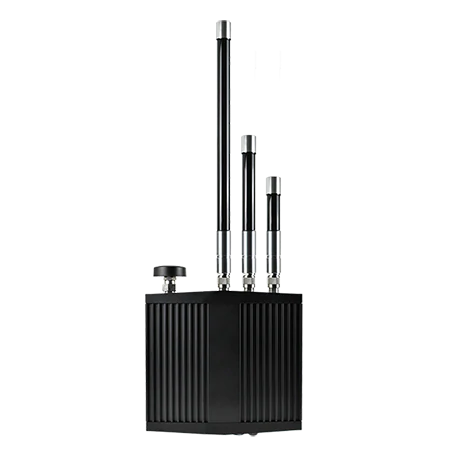

LoRaWAN Outdoor IoT gateway

MG9310 is a ruggedized LoRaWAN gateway, specifically designed for outdoor public or private network deployments. This high-performance IP65 gateway is capable of resisting the harshest environmental factors including moisture, dust, wind, rain, snow, and extreme heat, supporting LoRaWANTM applications in virtually any environment. Integrated with SX1301 LoRa Concentrator, with 8 multi-SF LoRa Channels and 1 FSK channel, support thousands of LoRaWAN end devices. provides durable, low-power, wide-area connectivity in support of M2M and IoT applications for both LoRa service providers and individual enterprises wanting to expand their LoRa network coverage.

Features

• LoRaWAN™ network compliant
• Channels: Up to 16 concurrent channels
• Communication Range：Over 15KM radius
• GNSS for location coordinate information
• Rich backhaul options：Support Ethernet/3G/4G LTE backhaul
• Support thousands to millions of devices depending on the data model
• Compact size210*190*60 mm
• Simple to mount and install
• Ruggedized housing, IP65 Waterproof for outdoor

Ordering information

• 1*MG9310 LoRaWAN Gateway
• 1*LoRa Antenna
• 1*2.4G WIFI Antenna
• 1*4G Antenna(Optional)
• 1*POE Power Code
